Stone Shot Blasting Machine: Principles, Applications, and Advantages

Introduction

Stone shot blasting machines are specialized surface treatment equipment designed for cleaning, texturing, and enhancing natural and artificial stones such as granite, marble, limestone, sandstone, and concrete blocks. Unlike conventional shot blasters for steel, these machines are engineered to accommodate stones’ unique physical properties, using high-velocity abrasive media to remove contaminants, roughen surfaces, or create decorative finishes. They are widely used in construction, architecture, and stone processing for anti-slip flooring, decorative cladding, and weather-resistant treatments.

Working Principles

The core principle relies on controlled mechanical erosion via high-speed abrasive impact, involving three key stages:

1. Abrasive Acceleration: Abrasive media (steel shot, grit, or mineral particles) are propelled by centrifugal turbines or compressed air at 50–100 m/s.

2. Surface Interaction: High-velocity abrasives strike the stone surface, removing thin layers, dirt, moss, efflorescence, or old coatings; for texturing, they create uniform roughness or decorative profiles.

3. Media Recovery & Dust Removal: Used abrasives are recycled via a separator, while dust and debris are extracted by a high-efficiency dust collection system (e.g., baghouse or cartridge filter) under negative pressure to ensure a clean workspace.

Key Components

A standard stone shot blasting machine consists of:

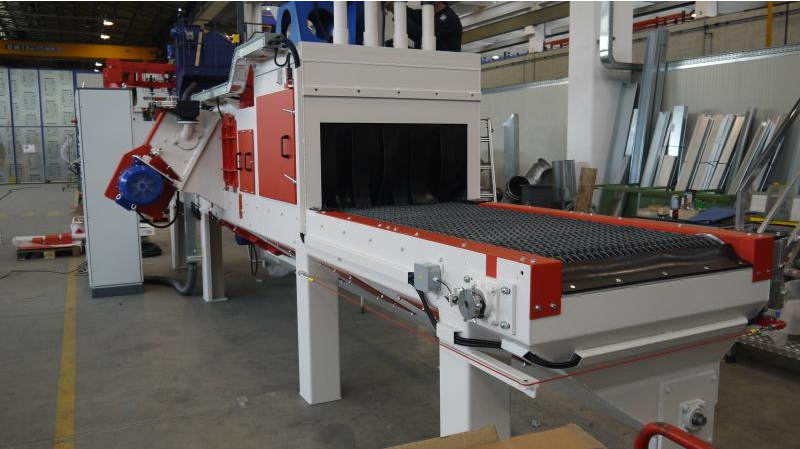

• Conveyor System: Rubber belt, mesh belt, or roller conveyor for continuous stone feeding; speed adjustable via VFD (Variable Frequency Drive).

• Blasting Chamber: Enclosed working area with multiple high-performance blast wheels (turbines) positioned above/below the conveyor for all-around treatment.

• Abrasive Recovery System: Cyclone separator and screen to recycle and filter abrasives for reuse.

• Dust Collection System: High-power baghouse or cartridge pulse dust remover to control dust and meet environmental standards.

• PLC Control Panel: Automated operation with adjustable parameters (conveyor speed, blast wheel rotation, abrasive flow) for precise finish control.

Applications

1. Surface Cleaning

• Remove dirt, moss, oil stains, efflorescence, and old coatings from stone slabs, tiles, and building facades.

• Clean concrete blocks, curb stones, and paving slabs for construction projects.

2. Texturing & Finishing

• Create bush-hammered, sandblasted, flamed, or antiqued effects for decorative purposes.

• Produce uniform roughness for anti-slip flooring (e.g., driveways, walkways, pool decks).

• Enhance the natural appearance of granite, marble, and limestone for wall cladding and interior decoration.

3. Renovation & Restoration

• Refinish old or worn stone surfaces to restore their original texture and aesthetics.

• Remove damaged layers from historical stone structures while preserving the base material.

Main Advantages

1. High Efficiency & Productivity: Continuous pass-through operation processes large volumes of stones quickly, far faster than manual methods.

2. Consistent Quality: Precise parameter control ensures uniform surface texture and finish across all workpieces, eliminating human error.

3. Cost-Effective: Low operating costs due to abrasive recycling; reduces labor reliance and chemical cleaning expenses.

4. Eco-Friendly: Chemical-free processing avoids acid washing and water/soil contamination; integrated dust collection minimizes air pollution.

5. Versatility: Compatible with various stones (natural and artificial) and customizable for different sizes, shapes, and finish requirements.

6. Safety: Enclosed blasting chamber and dust collection reduce operator exposure to dust and flying abrasives.

Conclusion

Stone shot blasting machines have revolutionized stone surface treatment by integrating efficiency, precision, and environmental sustainability. They meet the diverse needs of modern construction and stone processing, from cleaning and texturing to renovation, while ensuring consistent quality and cost savings. As the demand for high-quality stone finishes grows, these machines remain indispensable for fabricators, contractors, and architects worldwide.
